Record Room Layout: Audiophile Placement Measurement Guide

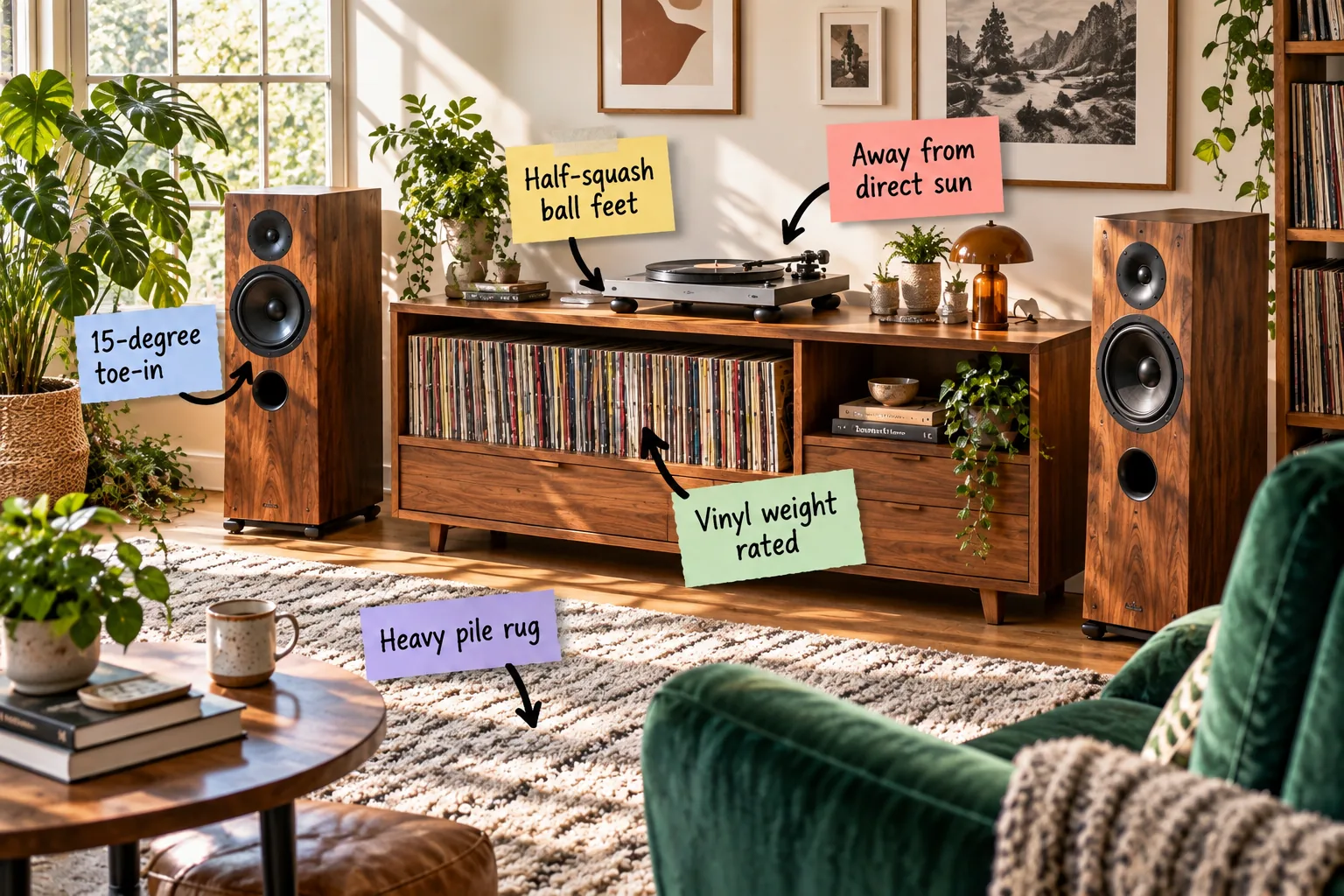

Sunlit listening room with a walnut console, turntable, freestanding speakers, and a green velvet lounge chair. — Each note links to its section below.

Welcome to your record room layout guide, where you will get the exact speaker and console placement measurement guide to build a flawless listening triangle. You will finally be able to measure, position, and isolate your turntable and speakers for optimal acoustic performance and record safety.

Selecting a Vinyl-Rated Console

Records are incredibly dense, meaning your cabinetry must be built to handle roughly 35 pounds per linear foot of shelving without bowing. You must start with a reinforced console to safely house your collection and provide a perfectly flat surface for playback.

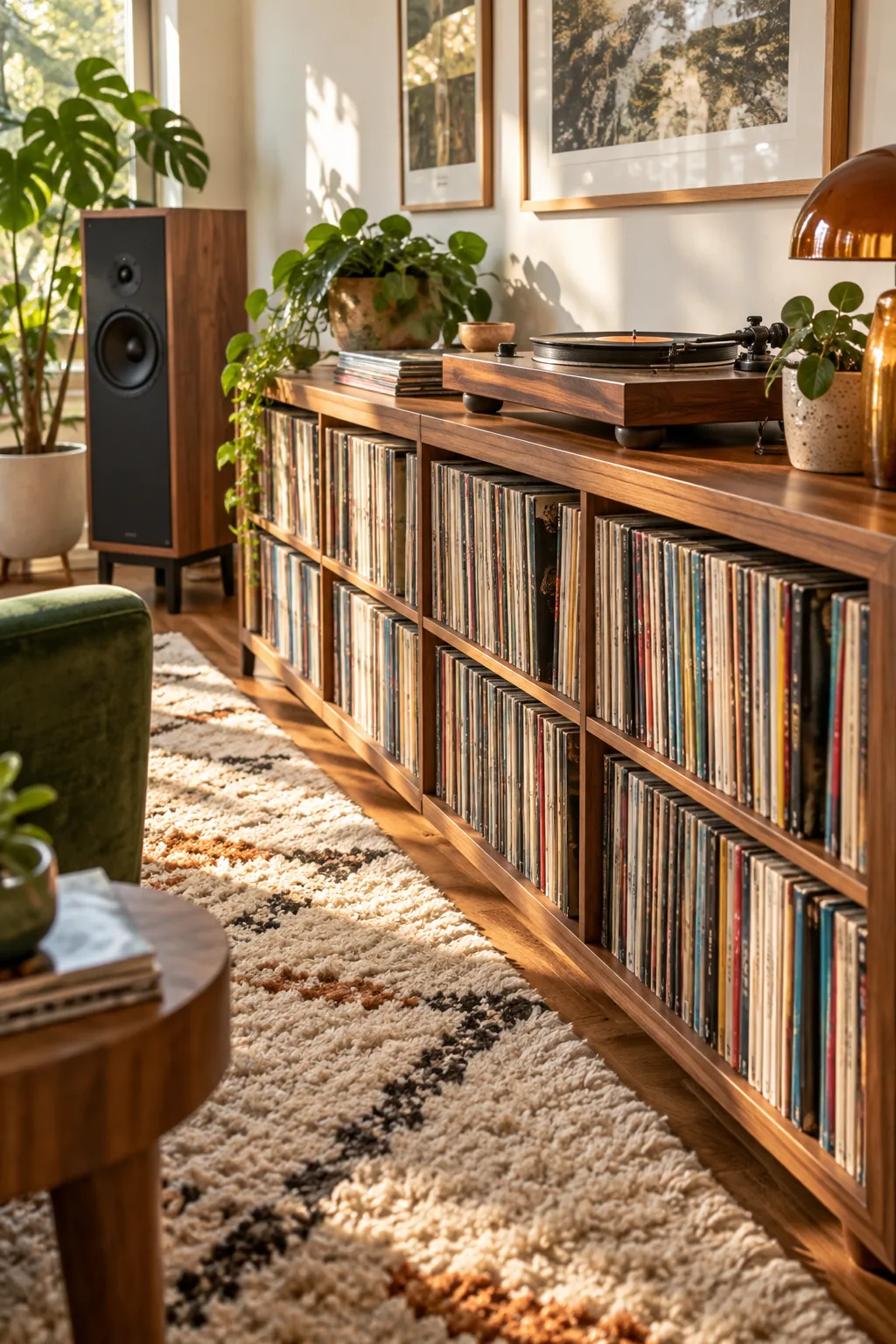

Thick walnut console shelf packed tightly with vinyl records. — Check the manufacturer weight limit before loading shelves.

Standard media units will quickly sag under this immense load, so always verify that your chosen furniture is explicitly vinyl weight rated. A strong, stable foundation is the critical first step in building a room from the center out.

Calculating Record Collection Weight

Before bringing any new furniture into your listening space, you must calculate the total mass your floor and cabinetry will need to support.

Collection Size	Shelf Length	Est. Weight	Console Type
50 records	1.5 feet	55 lbs	Standard reinforced
100 records	3.0 feet	105 lbs	Solid wood core
250 records	7.5 feet	265 lbs	Steel braced
500 records	15.0 feet	525 lbs	Commercial grade

Distributing this mass evenly across a solid wood frame prevents structural bowing over time and keeps your turntable perfectly level.

Console Wall Clearance

Position your console at least 3 to 4 inches away from the back wall to provide necessary ventilation for your amplifier. In my own Denver studio, pushing the cabinet too tight against the drywall meant I couldn’t fully open the turntable’s dust cover without scraping the paint.

Managing Amplifier Heat

High-fidelity amplifiers generate significant heat during extended listening sessions, which can damage internal components if trapped in a tight space. Leaving a generous air gap behind the console allows thermal energy to dissipate naturally into the room.

Routing Cables and Ventilation

A proper wall gap also ensures you have enough physical clearance to route thick, shielded RCA cables and heavy-gauge power cords. Preventing sharp bends in your wiring maintains signal integrity and extends the lifespan of your expensive interconnects.

Turntable Vibration Isolation

Even with the best isolation feet, proper turntable placement requires avoiding a few common setup errors that completely ruin sound quality.

I once ruined a delicate stylus during a listening party because the deck wasn’t isolated, which taught me to always place half-squash ball feet directly under the turntable. Decoupling the chassis from the console prevents heavy bass frequencies from causing skips.

Understanding Floor Resonance

Footfalls and low-frequency energy travel aggressively through hardwood floors and wooden furniture, muddying the audio before it ever reaches your ears. Breaking this physical connection with rubber domes ensures your stylus only tracks the grooves of the record.

Leveling the Turntable Platter

An unlevel playing surface causes the tonearm to pull inward or outward, distorting the stereo balance and permanently damaging your vinyl grooves. Always use a precision bubble level on the bare platter to verify perfect horizontal alignment before dropping the needle.

Protecting Equipment from Sunlight

Direct UV exposure will quickly warp your vinyl records and degrade the sensitive rubber belts inside your turntable over time.

Identify the room’s southern-facing windows to track peak daylight angles.
Position the console in a permanently shaded zone away from these rays.
Install heavy blackout curtains to deploy during high-exposure afternoon hours.

Keeping your delicate equipment away from direct sun preserves both the physical media and the sensitive mechanical components of your audio gear for decades of flawless playback.

The Speaker Placement Measurement Guide

Create an equilateral listening triangle for perfect stereo imaging by spacing your freestanding speakers exactly 6 to 8 feet apart. This specific geometry ensures the sound waves converge precisely at your listening position for maximum clarity.

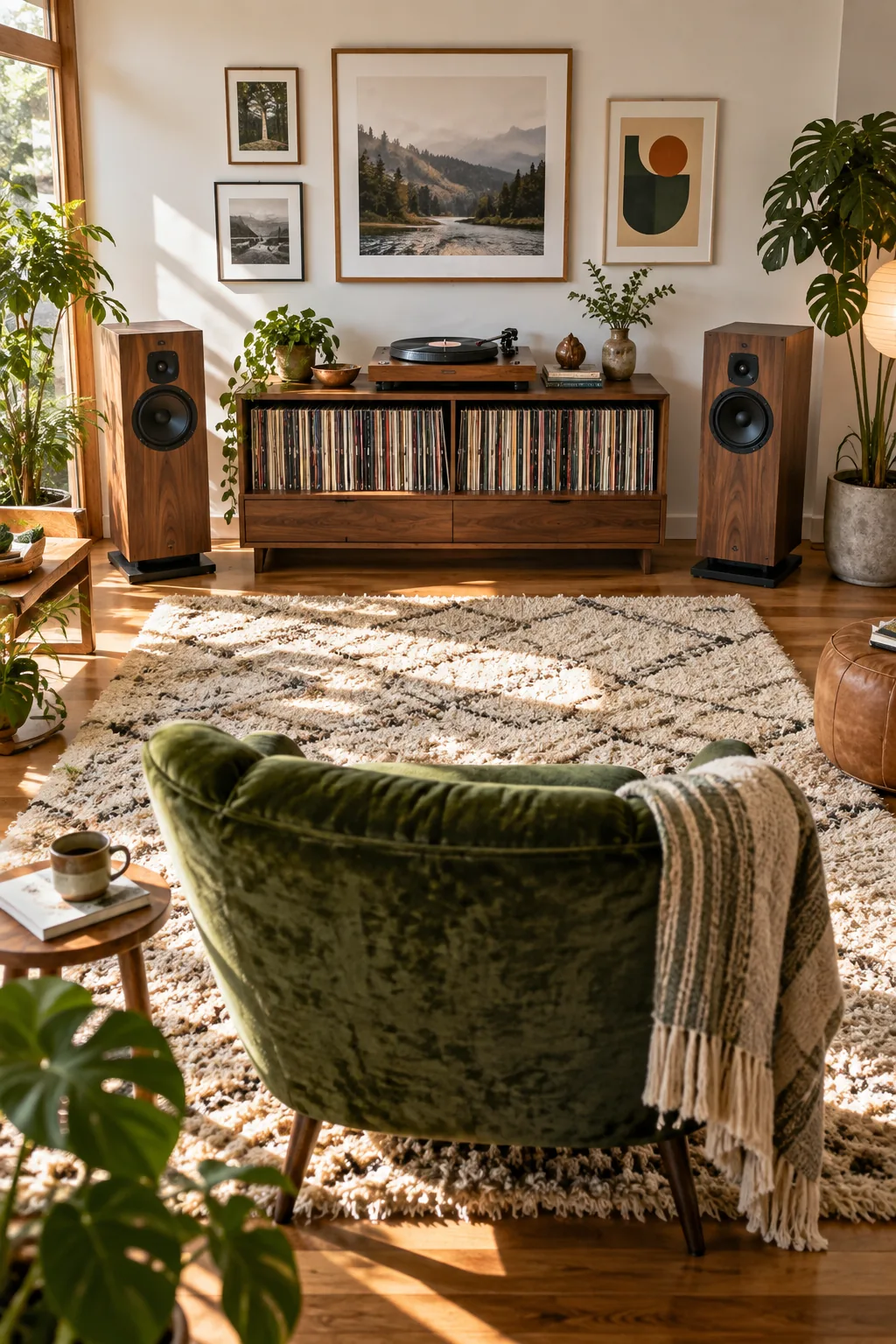

Two walnut speakers flanking a console in a symmetrical arrangement on a thick rug. — Measure directly from the center of the tweeter cone.

Before sitting down for your first focused listening session in your newly arranged space, verify your layout with these final measurement checks.

When I finally dialed in these exact measurements in my own living room, the vocal clarity instantly snapped into a stunning, three-dimensional center image.

Managing Rear Wall Proximity

Keep both speaker cabinets at least 2 feet away from the back wall to prevent bloated bass frequencies from overwhelming the room. Boundary reinforcement artificially inflates low-end response, which completely ruins the carefully engineered balance of your favorite albums.

Dialing In the Speaker Toe-In

Once your speakers are spaced correctly, angle their faces inward so the tweeters point directly at your listening position. A 15-degree toe-in is the industry standard starting point to create a sharp, focused soundstage.

Focusing the Phantom Center

This precise rotation aligns the high-frequency drivers with your ears, ensuring the vocals appear to float magically between the cabinets. Adjust the angle by single degrees until this phantom center image locks in with absolute pinpoint accuracy.

Taming Reflections with a Rug

Hardwood floors bounce sound waves upward, causing severe audio smear; laying a heavy pile rug between the speakers and your chair absorbs these first reflections. This simple textile addition instantly tightens the bass response and clarifies the crucial midrange frequencies.

Choosing the Right Acoustic Materials

Beyond the floor covering, incorporating soft, textured materials throughout the listening room prevents high frequencies from echoing harshly off flat drywall. Velvet curtains, fabric wall hangings, and plush upholstery all contribute to a controlled, studio-like acoustic environment.

Fine-Tuning the Listening Apex

The apex of your equilateral triangle is the only spot in the room where the left and right audio channels arrive simultaneously. Guard this geometric sweet spot carefully, as moving even a few inches off-center collapses the entire stereo illusion.

Positioning the Listening Chair

Place your primary lounge chair exactly at the apex of your measured triangle to lock in the perfect auditory experience. Ensure the seat is perfectly centered between the left and right speakers to maintain absolute phase coherence.

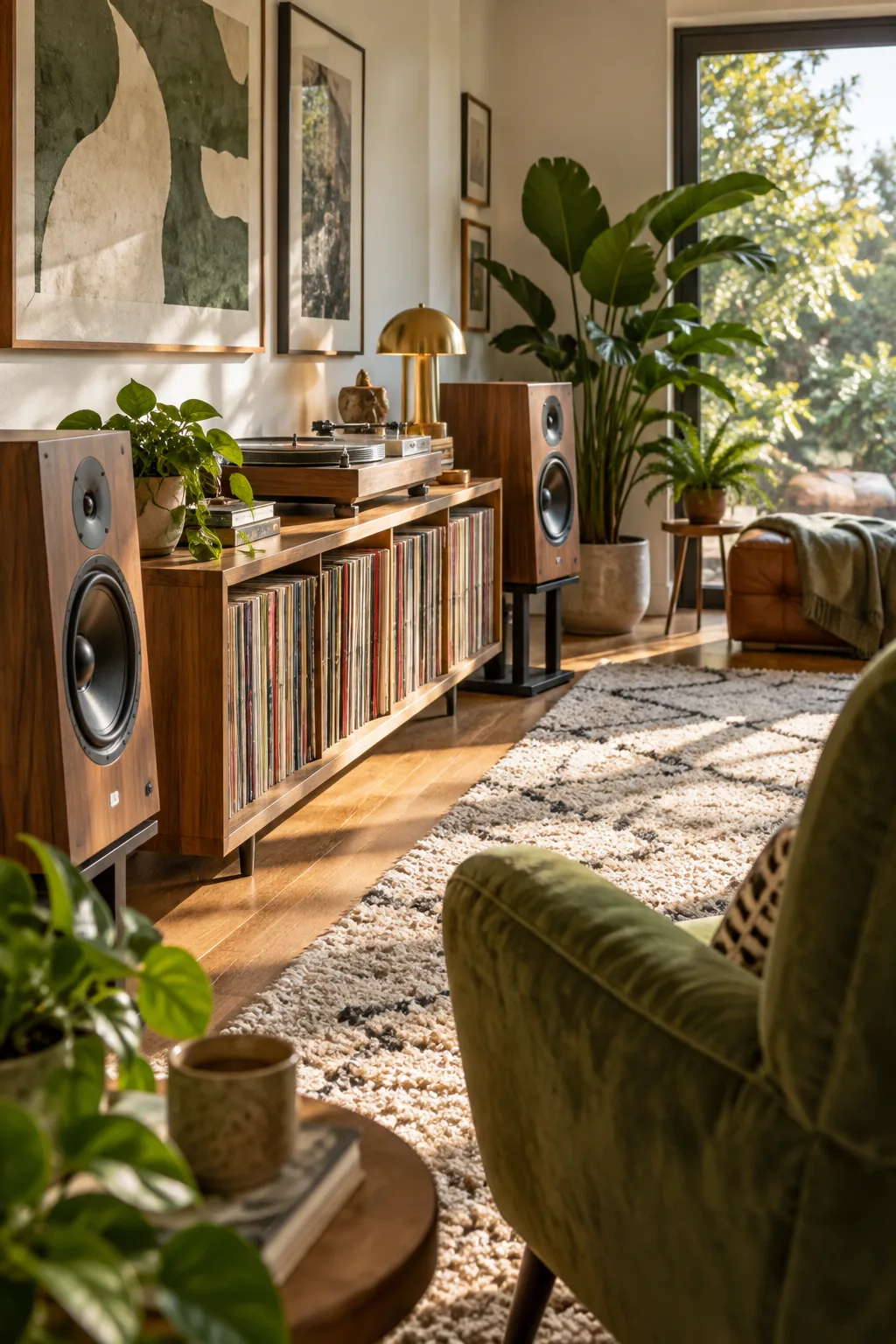

Green velvet armchair facing a thick rug and audio setup. — Pulling the seat forward prevents muddy bass frequency buildup.

Finally, ensure the back of the chair is at least 1 to 2 feet away from the rear wall. Sitting flush against a boundary artificially inflates low frequencies, completely ruining the delicate mix you just worked so hard to perfect.

3 record room styles to inspire your setup

Find the perfect aesthetic for your listening space with these distinct room designs.

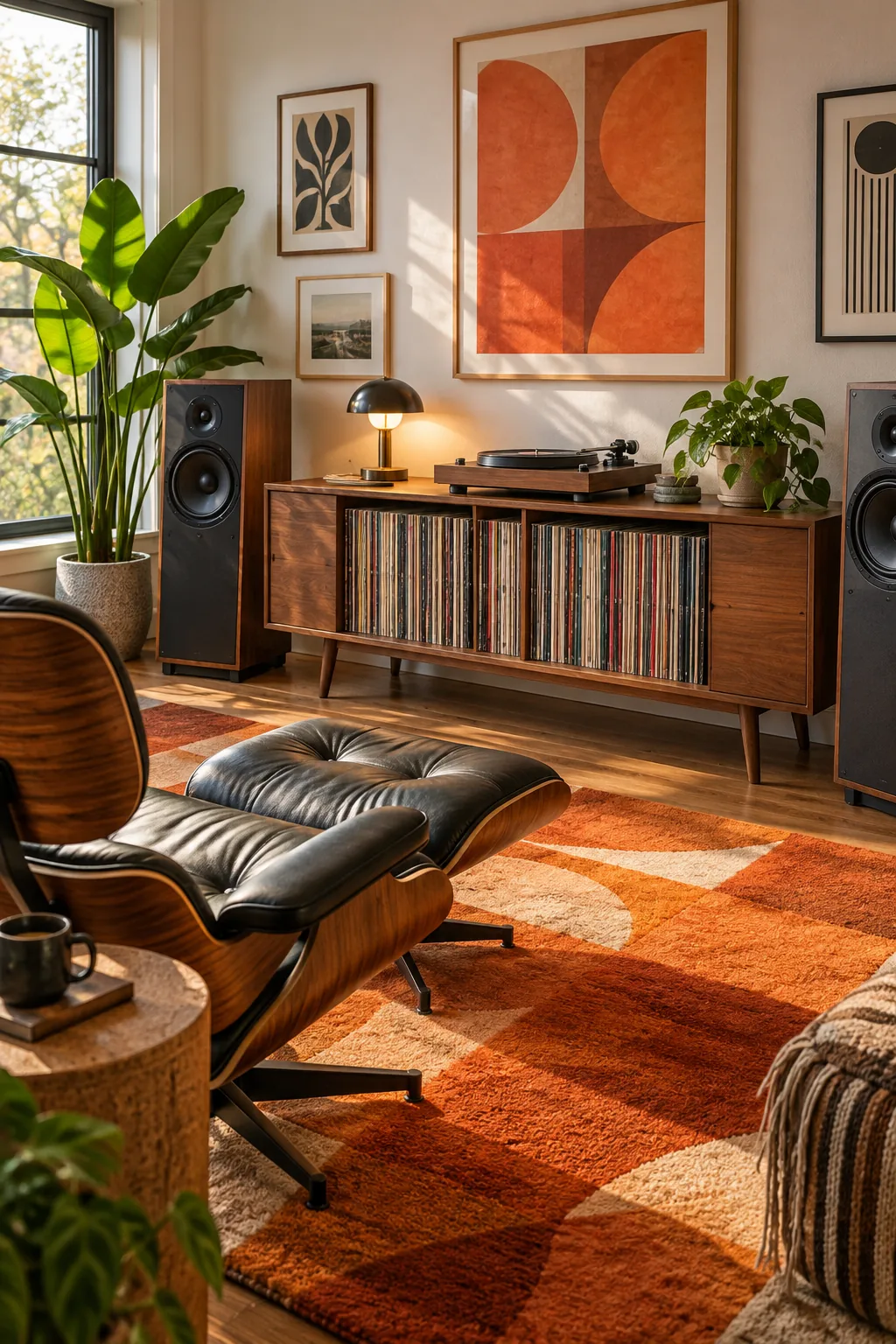

Mid-Century Modern: Warm teak woods and a vibrant orange rug create a retro atmosphere perfect for classic jazz and rock.

Mid-century modern listening room with a teak console, orange rug, and black leather chair.

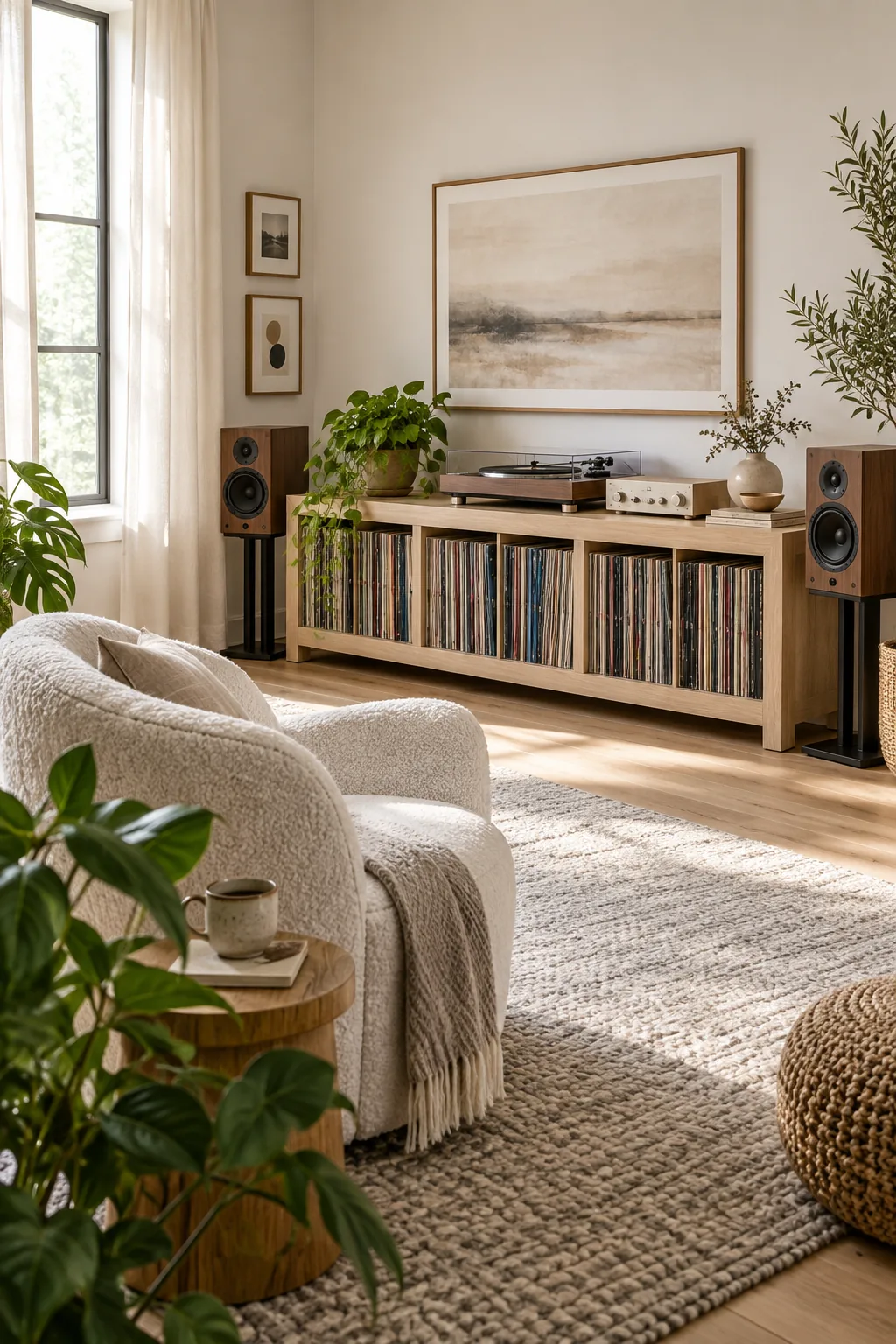

Scandi Minimalist: Pale oak and soft boucle textures keep the focus entirely on the music in this distraction-free space.

Scandinavian minimalist listening room with a white oak console, grey rug, and white boucle chair.

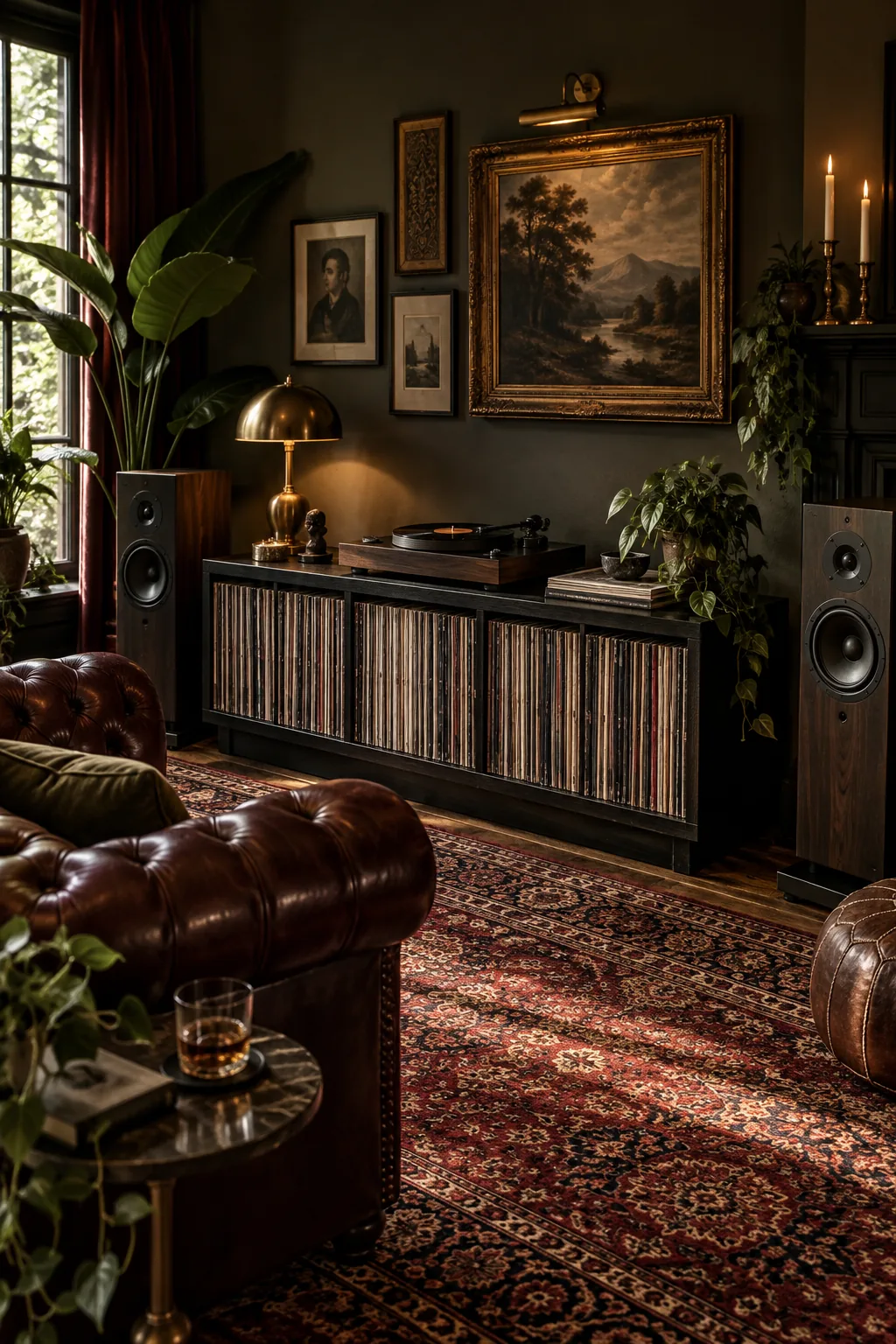

Moody Vintage: Deep colors and rich leather seating turn this listening area into a sophisticated evening retreat.
